High efficiency, ultra-light progress capture pulley

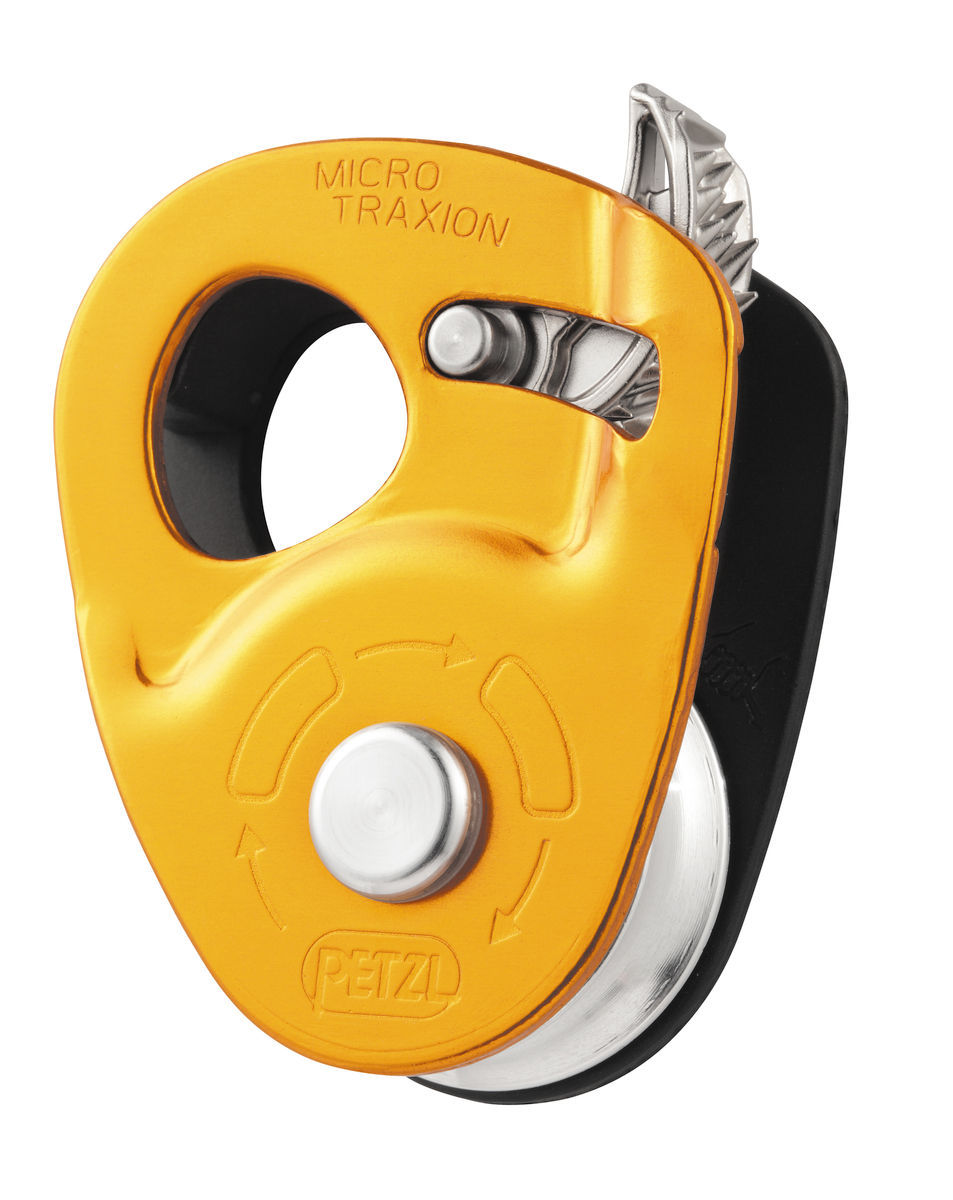

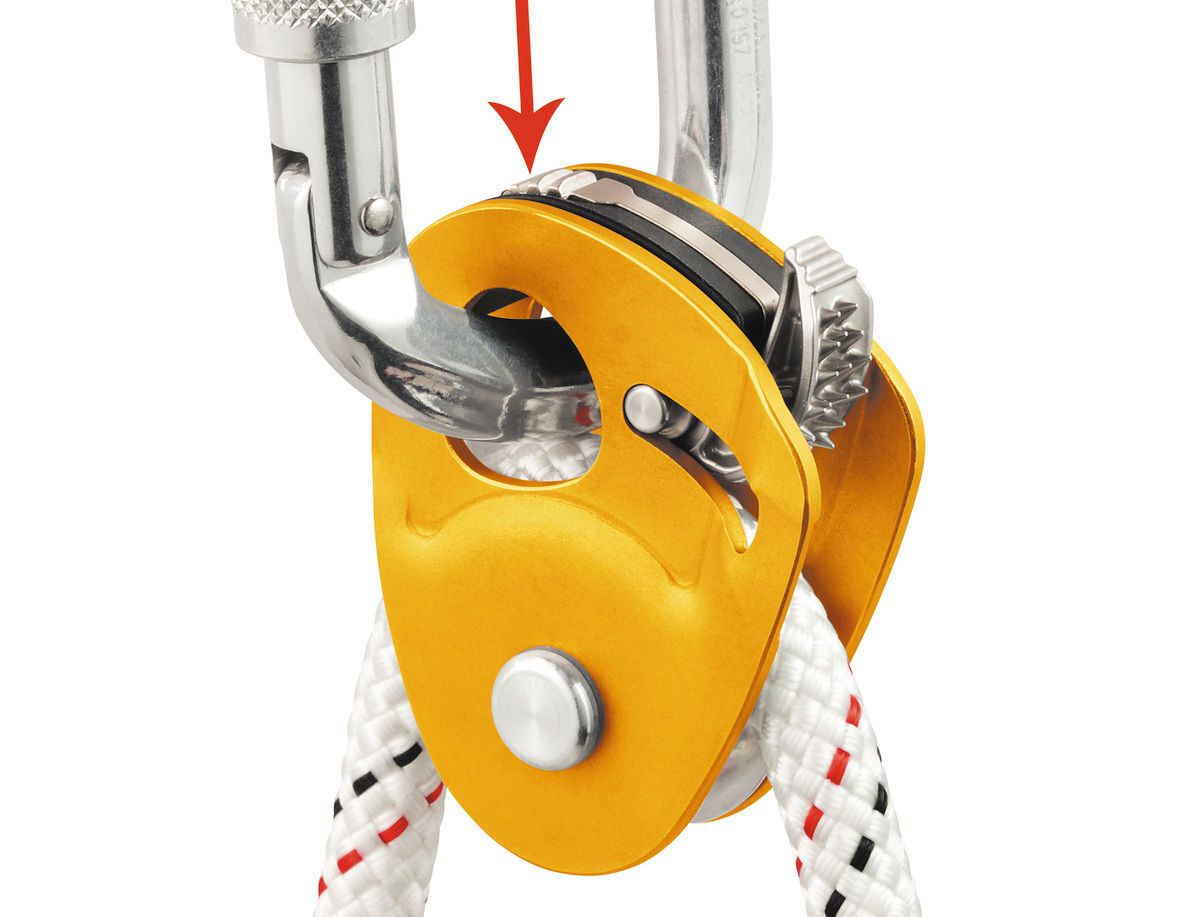

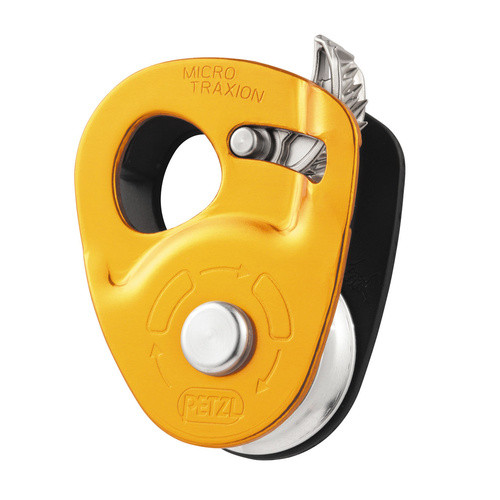

The MICRO TRAXION is an ultra-light (85 g), ultra-compact progress-capture pulley that is exceptionally efficient (91 %) thanks to its sealed ball bearings. The cam can be locked in open position so the device can be used as a simple pulley.

Description

  • Ultra-light and ultra-compact progress capture pulley
  • Sealed ball bearings provide excellent efficiency (91 %)
  • Cam can be locked in open position so device can be used as a simple pulley. Works even on frozen or muddy ropes.
  • For use on 8 - 11 mm diameter ropes
  • Rope installation diagrams engraved inside pulley
  • Designed for crevasse rescue, hauling, self-rescue and as an emergency ascender

Specifications

  • Weight: 85 g
  • Certification(s): CE EN 567, UIAA
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Working load: 2 x 2.5 = 5 kN
  • Breaking strength: 2 x 7,5 = 15 kN
  • Working load as progress capture pulley: 2.5 kN
  • Breaking strength as progress capture pulley: 4 kN
  • Efficiency: 91 %

(3342)

SKU 3342
Barcode # 3342540091986
Brand PETZL
Shipping Weight 0.1000kg
Shipping Width 0.200m
Shipping Height 0.030m
Shipping Length 0.150m
Shipping Cubic 0.000900000m3
